12 Examples Applications of Post Frame
Post-frame design works for many common project challenges.
David R. Bohnhoff, P.E., a Professor of Engineering at University of Wisconsin-Madison discusses these features of post-frame construction, and structural applications best-suited for the construction method. We invite you to read his essay.
The list below does not represent the only post frame structural applications. It simply details specific instances where post frame will most likely present the best option.
Below we've provided twelve specific case-examples where post frame provides a distinct advantage. Explore the examples. Also visit the Case Studies or Post Frame Project Gallery for more ideas:
Buildings With Numerous and/or Relatively Large Wall Openings
Post frame works great for retailers needing large glass facades.
Windows and doors in a post-frame building that are narrower than the post spacing typically do not require structural headers, since roof trusses/rafters in most post-frame buildings bear directly on the posts. Elimination of structural headers enables elimination of trimmer studs (a.k.a. jack studs, shoulder studs) and other special structural members required to support the headers.
Removing headers and their supports not only saves money, but results in an enhanced thermal envelope when framing members are replaced with thermal insulation. Additionally, fewer framing members mean fewer cracks for air infiltration.
Mini-warehouses (figure 1) and service garages typically have several equally-spaced and equally-sized overhead doors making them ideal candidates for post frame. In these buildings, posts are often used to frame both sides of the doors.

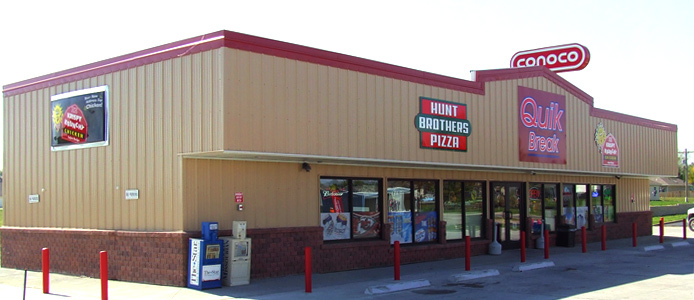

Replace the doors in a mini-warehouse with large glass panels, and you can understand why post frame is also ideal for retail stores with large glass facades like that shown in figure 2. In general, any building with large, regularly-spaced door and window openings is an ideal candidate for post frame (figure 3).

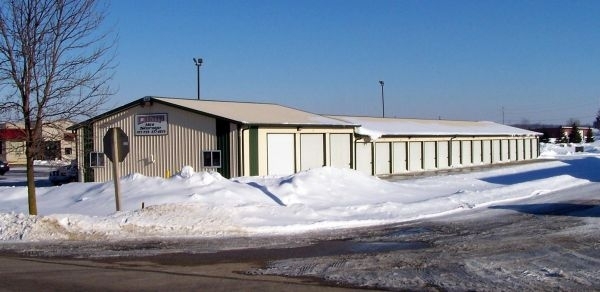

Figure 1: The numerous, equally-spaced overhead doors of mini-warehouses are ideal for post frame.

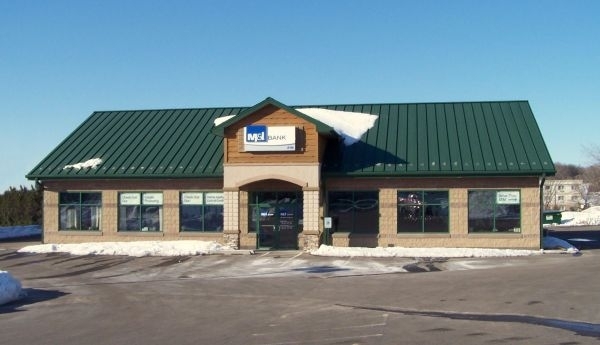

Figure 2: Large, equally spaced windows are well-suited for post frame.

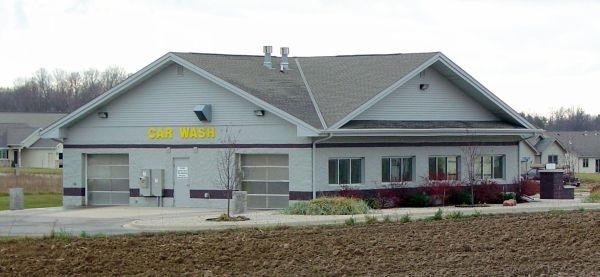

Figure 3: Post frame easily accommodates the size and relative location of door and window openings in this building.
Buildings Without Basements
Many buildings without basements are supported on cast-in-place crawlspace walls or frost walls that rest on continuous cast-in-place concrete footings. The construction time and concrete cost associated with these continuous concrete foundation walls and footings is significantly greater than that associated with a post-frame building that utilizes embedded posts or a post-on concrete pier system (figure 4) as its foundation system.
The material and labor savings associated with post/pier foundation systems makes them the most environmentally friendly foundation system in common use today. Additionally, embedded post and precast pier foundations can be easily removed and reused — a feature that adds to their status as a very environmentally-friendly foundation system.
Most buildings without basements feature concrete slab-on grade floors. More frequently today, these slabs contain radiant heating systems. When post/pier foundation systems are used, the interior concrete slab can be placed after the building shell has been erected. This has two major advantages.
First, concrete is much more protected during its placement from wind, precipitation in all forms, and temperature extremes. This can translate into fewer unexpected scheduling delays, less need for costly heat and moisture protection systems, and enhanced concrete surface finish, durability, and
strength properties.
Second, less pre-planning is required for below slab installation of HVAC, plumbing and electrical system components. In fact, no preplanning is required when the interior concrete slab is placed after HVAC, plumbing and electrical system installations have been completed. With respect to utilities, it is also important to realize that insulation must be placed under a slab that contains a radiant heating system, and placement of this insulation requires a very level, properly compacted base— something more easily achieved and maintained in a protected environment.
Some builders may opt to place posts on the thickened edge (i.e., grade beam) of a concrete slab. Such systems generally require more total concrete than systems with concrete pier foundations since the extra concrete required for the grade beams usually exceeds that required to fabricate the concrete piers. Additionally, the probability of a foundation failure is greater for floating slab foundations than for buildings completely supported on piers and other foundation systems that extend below the frost line.

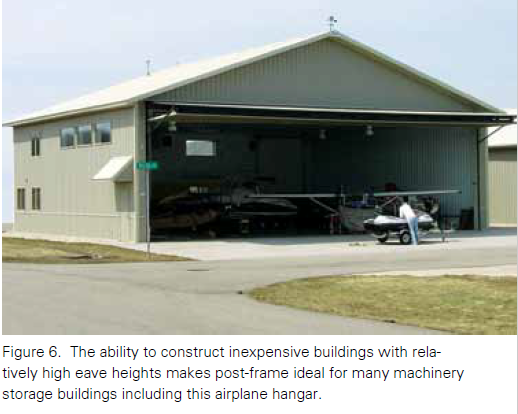

Buildings With Tall Exterior Walls

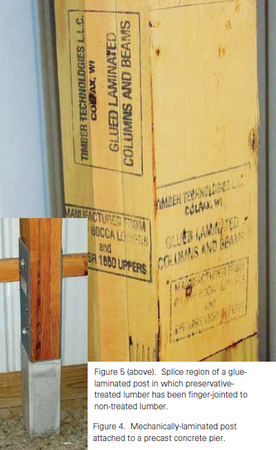

Mechanically- and glue-laminated posts (figures 4 and 5, respectively) are used in the vast majority of today’s post-frame buildings. These posts enable the construction of buildings with relative large floor-to-ceiling heights at prices much less than they could be fabricated with a comparable wood stud wall.
Laminated posts can be fabricated to any length by splicing shorter pieces of wood together. Laminated posts are also straight and inherently more stable because of the laminating process. The only way to get a tall, relatively straight wall with wood studs is to use more expensive, engineered lumber products (e.g., laminated strand lumber, parallel strand lumber).
As wall height increases, bending moments in the wall’s vertical framing elements increase. This increase is not minor. Bending moments induced by uniformly-applied loads increase with the square of the unsupported length of a member. This means that a 20-foot wall stud is subjected to a bending moment that is four times greater than that for a 10-foot wall stud with the same on-center spacing.
Laminated posts are able to deal with increases in bending moment more effectively than solid-sawn posts. This is because weak areas in one layer of a laminated assembly are supported by adjacent layers — layers with a low probability of having a weakness at the same location. This support of weak areas in one layer by the adjacent layers gives rise to the phenomena of load sharing. Load sharing is very important in any area of a laminated assembly in which there is a butt joint between two members. Because of load sharing, the design strength of a laminated assembly is greater than the summed total of its individual layers prior to lamination.
The increased bending moments associated with taller walls may be handled by using higher grade lumber or with larger vertical wall framing elements. Another option is to reduce the spacing of the framing elements so that each element is subjected to less load. These options are easy to accommodate into post-frame building design. It’s one more reason why they get the nod over other framing systems in tall wall applications.
The cost advantage that post-frame buildings hold over low-rise steel frame buildings generally starts to disappear once minimum floor-to-ceiling heights move beyond 20 feet. Below these heights, post-frame holds thermal insulation advantages, if not cost advantages, over steel frame structures. This has made post-frame very popular for storage facilities such as the airplane hangar in figure 6.
It is not uncommon for the required length of vertical wall framing elements to be significantly different in various locations within a building. Where such length variations occur, structural requirements for the longer elements generally control framing/support system selection. Significant wall framing length variations most commonly occur in the endwall framing of wide buildings with sloped ceilings (the dairy freestall barn in figure 7 is one such example). Not surprisingly, the endwalls in many of these buildings are post-frame.
Bulk Storage Facilities
Bulk storage refers to storage of a relatively large quantity of a particular material or commodity such as cement, sand, salt, fertilizer, fruit, a vegetable, seed, feed, cotton, straw, aggregate, etc. If a bulk storage building wall is used to contain stored material, that wall must be designed to resist the resulting horizontal pressure which is directly dependent on the height of the stored material. Even for stored material heights of only a few feet, this pressure will be several times greater than the pressure applied to exterior walls by even the highest of winds.
As noted in the previous section, higher wall forces are easily accommodated in post-frame building design by altering post size and/or spacing. Post spacing is generally dictated by the spanning capability of the structural material used to contain the bulk material.

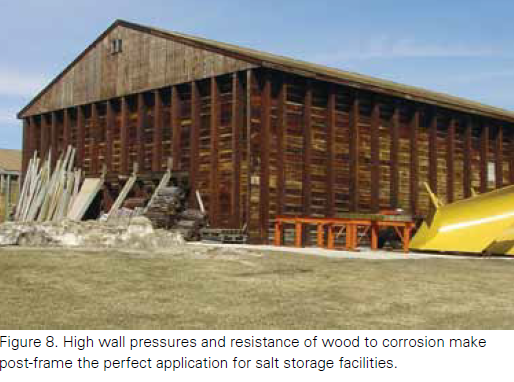

When it comes to storing fertilizer, salt and other corrosive materials, post-frame buildings are almost always the structural framing/support system of choice (figure 8).

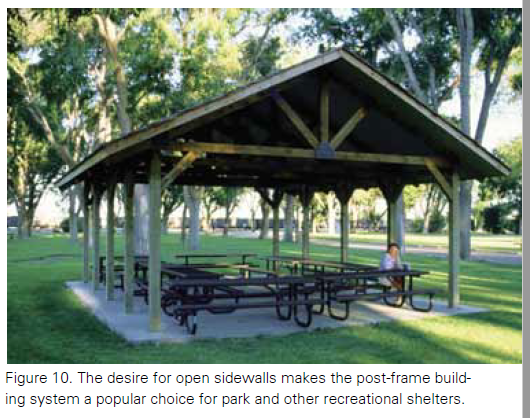

Buildings With Open Walls
Buildings whose only purpose is to provide protection from precipitation and/or solar radiation are generally fabricated with one or more open sides. This would include many commodity (e.g. fertilizer, lumber, feed) storage buildings, animal shelters, and park and other recreational shelters. Open sides facilitate quick building access, which can translate into significant cost savings when handling stored materials.
Unless a unique structural support system has been employed, expect the roof above an open wall to be supported by posts with an on-center spacing of 8 or more feet. Since these posts are seldom laterally supported between their base and crown, they must be designed to resist buckling equally in all horizontal
directions. For this reason they tend to be round poles, square solid-sawn timbers, or square glulam or parallel-strand lumber members. Nail-laminated posts will typically require the addition of face plates to obtain relatively equal bending strength in all horizontal directions.
Wood posts in open-front buildings are often preservative-treated because of their direct exposure to “the elements.” However, in situations where wood posts are supported on concrete piers or walls and fairly well protected from precipitation with a roof overhang, preservative treatment may be unnecessary.

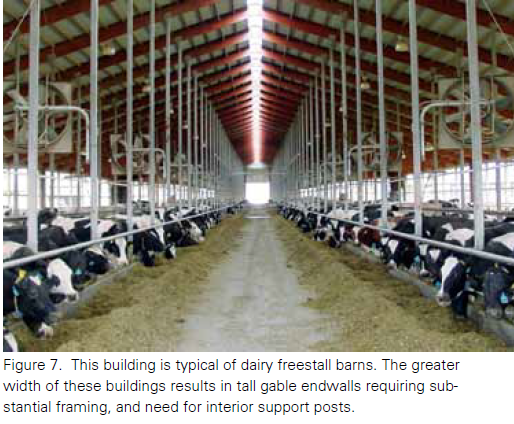

Buildings Requiring Interior Posts
When a building has interior columns, it is advantageous to use a postframe building system for two reasons. First, it increases the likelihood that all building support elements will be on similar footings. This speeds construction and minimizes the likelihood of differential settlement. Second, interior posts may be more effectively incorporated into the framing system since they can be aligned with, and then connected via rafters or header beams to exterior posts to form rugged primary building frames.
Interior posts are used in place of interior load-bearing walls, primarily because they provide for a more open floor plan. Money may also be saved by switching from bearing walls to posts, since posts utilize isolated footings which require less concrete than the continuous footings used to support bearing walls.

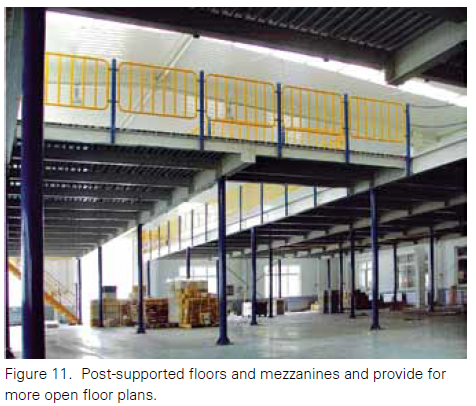

Interior posts are either used to support roofs in wide buildings or mezzanines (figure 11). In practice, wood-framed roofs that clearspan more than 90 feet and are subjected to heavy snow loads generally will not be economically competitive with steel roof framing unless interior support is provided.
Interior posts are seldom laterally supported between their base and crown, and thus are similar in design to posts in open exterior walls.
Buildings With Large Clearspan Wood Trusses

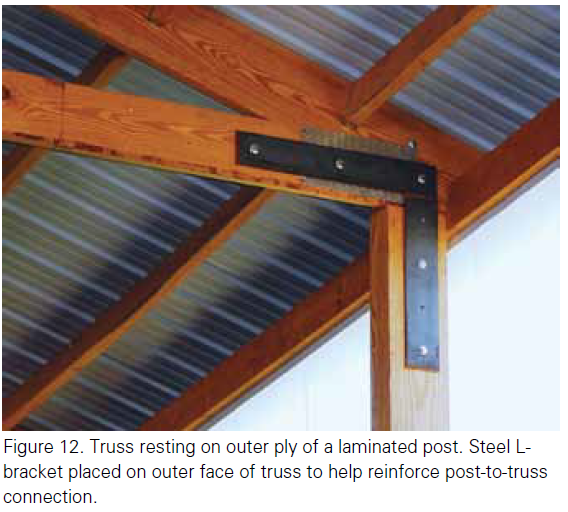

Component connections are critical to the structural integrity of a framing system. In buildings with large, clearspan wood trusses, the most critical connections are those between the truss and its supports. In addition to gravity-induced forces (a.k.a. bearing loads), these connections must resist shear forces acting perpendicular to the plane of the truss and uplift forces due to wind. Depending upon overall building design, connections may also be required to transfer bending moment.

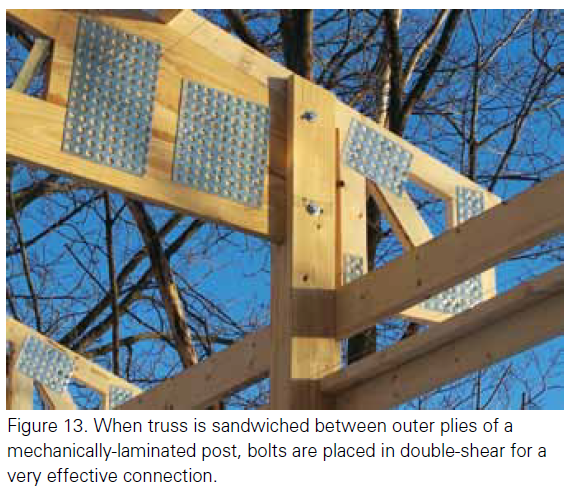

Wood posts enable the fabrication of strong, direct, yet inexpensive connections between large trusses and walls. Exact details for post-to-truss connections vary from designer to designer, and may be influenced by post type. Solid-sawn timber and glulam posts are generally notched to form a truss bearing surface. The truss is rested on notches and bolted into place. A special plate/bracket like that shown in figure 12 may be added to increase connection load transfer capabilities. With mechanically-laminated posts, the truss may rest on a shortened outer-ply or on a shortened inner-ply. The later scenario, which is shown in figure 13, places the
bolts in double shear and is a very effective connection.

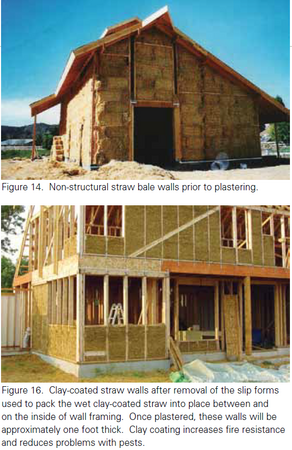

Buildings That Accomodate Non-Structural "INFILL" Panels/Materials
If you visualize replacing all the overhead doors in the mini-warehouse shown in figure 1 with non-load bearing wall materials, you can understand why post-frame is the ideal structural support system for straw bale walls (figure 14), cordwood or stackwood walls, light-clay coated organic fiber walls (figure 16) and even earthen walls. Given that straw, cordwood, clay-coated organic fibers and plain old earth are all considered very environmentally-friendly materials, expect the number of post-frame buildings constructed with in-fill walls of these materials to grow.
When it comes to frame openness, it helps to look at the post-frame building system as a more structurally efficient version of a timber-frame building system. In short, any wall cladding or infill material that has been utilized on or in a timber-frame building may be used on or in a post-frame building. This includes application of structural insulated panels (SIP) to wall and roof surfaces.
Stilt Buildings
Stilt buildings are among the least expensive options when building in floodplains, over very poor soils or water, on very steep terrain, and in regions of high snowfall..
Stilt buildings fall into two categories: those with stilts that only support sill plates and floor headers, and those with stilts that connect to both roof and floor framing. The latter are essentially post-frame buildings with wood-framed floors. Exactly how a post-frame stilt building would be detailed depends largely on desired floor, wall and ceiling finishes as they control the spacing of structural frame components.

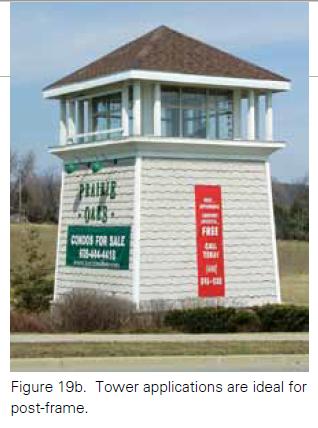

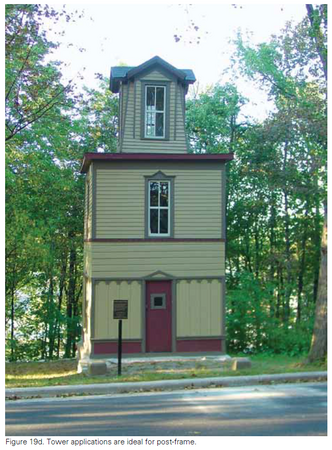

Towers and Buildings With Towers
Towers are a natural fit for wood posts. When posts are properly connected and anchored, very strong and relatively inexpensive three-dimensional tower frames may be built, as evidenced by the many pole-supported forest fire lookout towers built in North America during the early years of the 900s.
Multi-story towers are becoming popular additions to commercial buildings. In addition to adding flare to a building, they frequently serve as stairwells, sources of natural light, clock towers and observatories. Figures 19b and 19d show wood-framed towers and buildings with attached towers.
Buildings With Post-Supported Roof Overhangs and Porches
There are benefits to using a post-frame building system any time a building features a relatively long post-supported porch, roof overhang or arcade.
Spacing of posts used to support a building’s porch, roof overhang and/or arcade (an arcade is a walkway at the edge of a building that has a cover supported by posts) is generally in the 6 to 10 foot range regardless of the building’s structural framing/support system. Given that this spacing is typical of the post spacing in most post-frame buildings, there are benefits to using a post-frame building system anytime a building features a relatively long post-supported porch, roof overhang or arcade.
First, it increases the likelihood that all building support elements will be on similar footings. This speeds construction and minimizes the likelihood of differential settlement. Second, posts used to support a porch, roof overhang or arcade may be aligned with — and then connected via — rafters to posts in the exterior wall to form a more efficient structural frame.
Buildings With Braket-Supported Overhangs

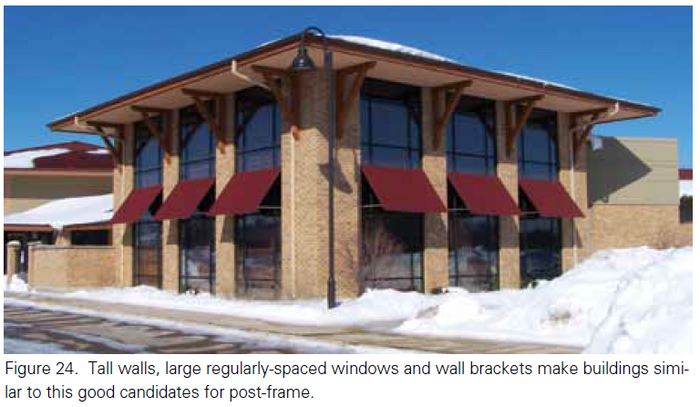

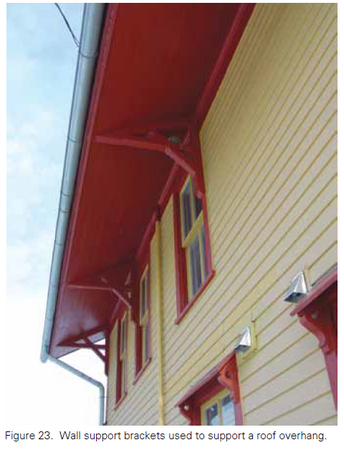

Roof overhangs and eyebrow overhangs are commonly added to buildings to improve building aesthetics and durability. They improve durability by protecting door and window openings and siding from precipitation. They also keep snow slides away from the building and limit intrusion of direct solar radiation during warm periods.
As the distance that an overhang extends from the building wall increases, it is more likely the overhang will be supported by a post or wall support bracket (figure 24).
Whether post or wall support brackets are used largely depends on over-hang height. Normally, post supports
are used for lower overhangs because of headroom clearance issues when wall support brackets are used.
With higher overhangs, wall support brackets generally look better than posts and are normally less expensive
than post supports because of the added foundation and header beams required with post supports.
Wall support brackets are the ideal overhang support system for post-frame buildings in which truss and post spacing are equal. In such buildings, posts and trusses form a series of post-frames as previously described. When wall support brackets are attached to the posts and framing of the overhang, they add rigidity to each post-frame.
In situations where the overhang is a roof overhang, the wall support bracket attaches the end of the truss to the post, thus functioning much like an exterior kneebrace.
